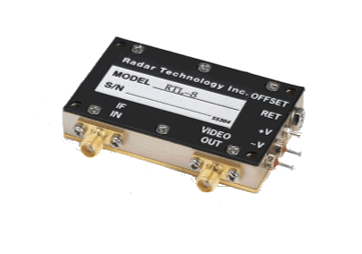

RTL-8 Series Logarithmic Hybrid Amplifiers

Bookmark and Share

Description

RTI has developed a series of hybrid log amplifiers that are 30% smaller than our RTL-4 Series without sacrificing the electrical performance characteristics found in the RTL-4 series log amplifiers.

Design Note: Radar Technology can customize any of our products to meet your individual system requirements. RTI also offers many Form, Fit, Function replacements to old RHG Electronics Amplifiers.

Features

  • 80dB Dynamic Range
  • ± 1 dB Linearity
  • DC Coupled Video
  • Built-in Voltage Regulation
  • Excellent Pulse Response
General Specifications
Linearity ±1 dB (add ±0.5 dB over Temperature)
(-30°C to +71°C)
Sensitivity 25mV/dB (typ)
Source Impedance 50 Ohms
Video Load Input 93 Ohms
Power Requirements ± 15 VDC
Connectors SMA

Optional Specifications
Limited IF Output 0 dBm (add suffix B)
Power Supplies ±12V DC (add suffix C)
Matched Set 2,3 units/set (add suffix M)

RTL-8 Specification Table
Model Center Frequency(MHz) Bandwidth(MHz) Rise Time(uS) Dynamic Range(dB) Input Power(dBm)
RTL-8-10031030.580-80 to 0
RTL-8-30023020.580-80 to 0
RTL-8-30043040.2580-80 to 0
RTL-8-301030100.180-80 to 0
RTL-8-451045100.180-80 to 0
RTL-8-601060100.180-80 to 0
RTL-8-602060200.0580-80 to 0
RTL-8-701070100.180-80 to 0
RTL-8-702070200.0580-80 to 0
RTL-8-12020120200.0570-70 to 0
RTL-8-12040120400.0370-70 to 0
RTL-8-16020160200.0570-70 to 0
RTL-8-16030160300.0470-70 to 0
RTL-8-16040160400.0370-70 to 0
